Wave Form Patterns

Colorado Precision has fabricated a variety of precision waveforms for such uses as computer backlighting and experimental drag reduction film for America's Cup-class yachts.

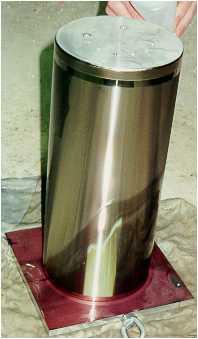

At left is a pattern diamond turned on a 8" dia. by 18" long cylinder (electroless Ni plated)

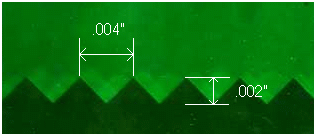

Cross Section of Y=2*cos(7.2*X)+2*cos(4.8*X)

Part Side Cut with .001" Radius Tool

249 Lines Per Inch on Electroless Nickel
